ForeCast Heavy SU Guides

Name: ForeCast Heavy SU Guides
Availability: InStock

$1.64 – $10.61

The ForeCast SU guides are heavy duty for the harshest conditions. This SU guide heavy duty braced design is ideal for heavy salt water boat rods. ForeCast SU guides have been specifically designed for the 50-80lb line class, providing much needed strength and durability. The ForeCast SU guide is essential when harsh conditions is what you will endure. Due to the heavy duty construction, the brass frames with hard aluminum oxide rings are double plated to resist corrosion.

Brand: ForeCast

Product Description

Pre Ground Foot
Double Foot Design
Braid Proof
Double Plated
Superb Corrosion Resistance
Recommended for 50-80 lb. Test Line
Frame: Hard Chrome Over Brass

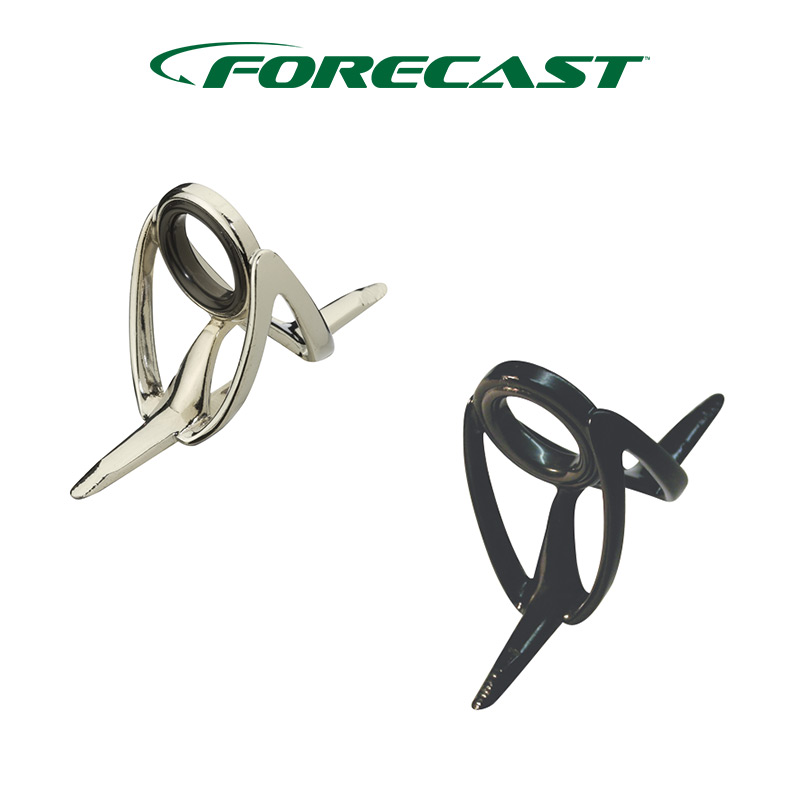

Frame Color:

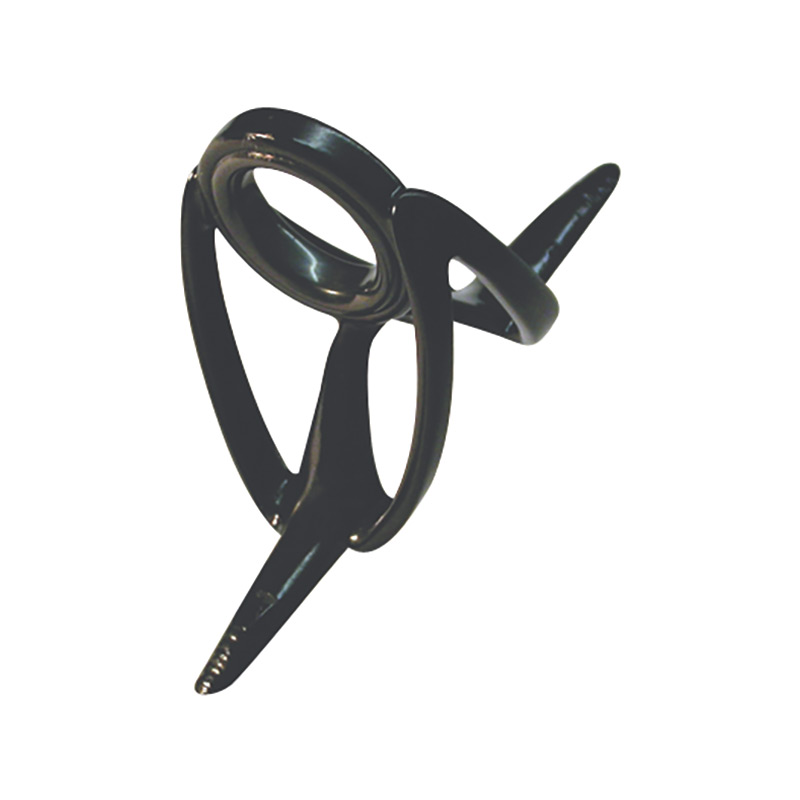

- BSULG: Black

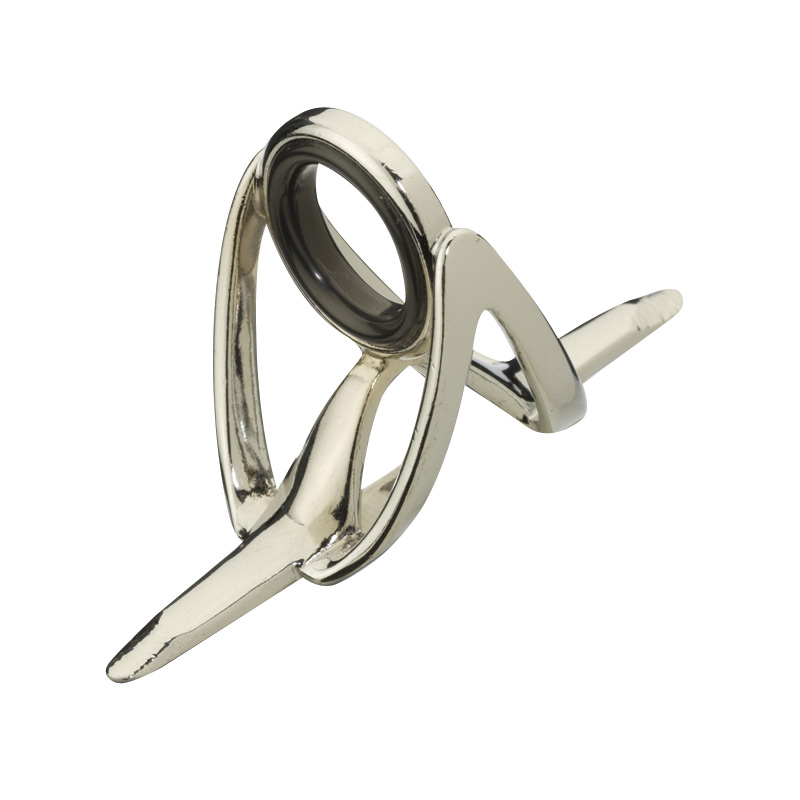

- SULG: Silver
Ring Type: Hard Aluminum Oxide
Ring Color: Charcoal Gray
Matching Tip Tops:
- ForeCast™ SU Tip Top

Specifications

Guide Sizes	Ring Size (mm OD)	Ring Size (mm ID)	Length (mm)	Length (in)	Height (mm)	Height (in)	Weight (grains)	Weight (oz)
8	8	4.4	28.2	1.110	14.9	0.589	50.3	0.115
10	10	5.4	33.6	1.32	17.2	0.677	50.7	0.116
12	12	6.4	43.60	1.72	20.8	0.819	80.3	0.184
16	16	9.1	54.8	2.15	27.6	1.080	159.6	0.365
20	20	12.2	59.50	2.340	32.6	1.28	234	0.535
25	25	15.6	63	2.480	39.5	1.55	329.5	0.753
30	30	21.8	73.90	2.900	50.1	1.970	482.6	1.103
